EdgeBox-PLC is a next generation PLC for industrial controls with a hybrid structure of IT(information technology ) and OT(operation technology).
Overview

EdgeBox-PLC is a next generation PLC for industrial controls with a hybrid structure of IT(information technology ) and OT(operation technology). It is an innovative, Linux-based compact controller for universal processing purposes of standard industrial signals. The controller module provides to the isolated local inputs and outputs as well as versatile communication interfaces. Due to CAN and Ethernet interfaces, the EdgePLC is suited for realizing decentral control tasks in distributed fieldbus systems of automation technology.

Specifications

CPU

  • ST STM32MP157 Dual Core ARM A7 running at 800MHZ
  • Co-processor  ARM M4 running at 209MHZ

Memory

  • 1 GB DDR3L
  • 16 MB SPI FLASH
  • 8 GB eMMC

Interfaces

  • 1 × RJ45 ethernet port support 10/100M/1000M
  • 1 × RJ45 ethernet port support 10/100M
  • 2 × USB host ports
  • 2 × Isolated CAN bus ports with CAN-FD support
  • 1 x Isolated RS485
  • 1 x RS232
  • 1 x mini-PCIe socket with sim card
  • 16x isolated digital input
  • 8x isolated analog input
  • 16x isolated digital output
  • 3x dual color LED indicators
  • 24V DC power supply

Misc

  • RTC with super capacitance
  • Encryp unit
  • Hardware watch dog timer

Dimensions

  • 185x105x35 mm

Software

  • Open source linux OS
  • C/C++,Golang SDK
  • Modbus tcp and Modbus RTU
  • MQTT

Complicances

CE and FCC  under processing

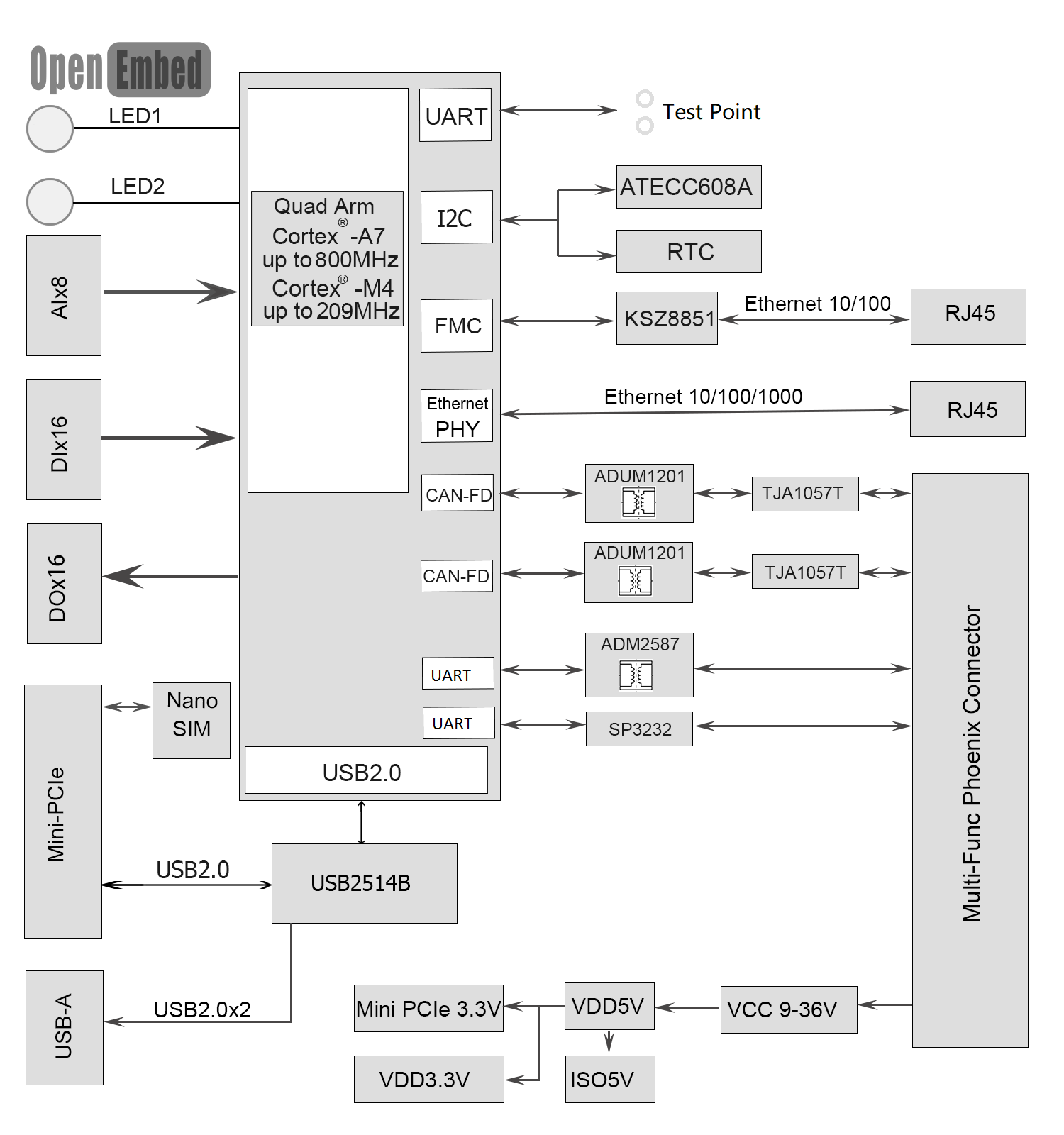

Block Diagram
